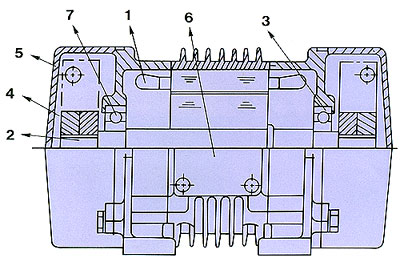

1.
|
 |
1.
|
Coil
and isolation processing : The motor coil is made
of the wire coated with H type isolating paint and received
adequate vibrating-proof processing. |
|
2.
|
 |
2.
|
Rotating
shft: which is made of the rigid chrome steel which
is facilitative to the load of vibrating vane centrigugal
force. |
|
3.
|
 |
3.
|
Bearing:
This motor is designed and manfactured for the industrial
circle in which the vibrating device ismandatory in their
production facility, so it must be stable and heavy-duty
in structure; however, its consuming spare parts are still
in need of regular care or maintenance with a view to
extending its service life. All the ball-shape bearings
used in this motor have their longer service life records.
Additionally, they are easy to replace.. |
|
4.
|
 |
4.
|
Deviative
vibrating vanes : They are made of topline quality
cast iron.In setting-up operation, it must be adjusted
to produce adequate vibrating force and then to have it
fixed at both ends. |
|
5.
|
 |
5.
|
Outlet
cord: The extension cord at outlet is subject to
damage due to vibrating, so it is double protected by
metal and rubber sleeves. |
|
6.
|
 |
6.
|
The
beads service life: As the service life of SKF
steel beads is various with types ; all of them are marked
with the service life more than 3000 hours, that is certainly
staggering. |
|
7.
|
 |
7.
|
This
motor can run long time. |
|
8.
|
 |
8.
|
In
case, customers want their motors to be water-proof, and
explosion-proof or to be made in accordance with their
own specification, a specific order can be placed to meet
the requirement. |
