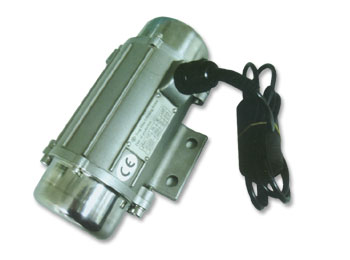

PCB VIBRATING MOTOR /
PCB
振動力
Type/Size
Vibration energy(kg)
KW
HZ
Voltage
( V )
R.P.M
( Kg )
2P-03S
40
30W
50/60 3000/3600
3.1
2P-05S
50
50W
3.1
2P-10S
70
75W
4.4

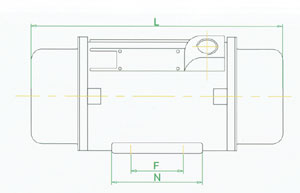

The dimension or size of various electric motors /

  D
  E
  F
  G
  H
  L
  M
  N
  d

30W(50W)

70
92
36
7
77
177
112
73
9*13
75W
81
101
36
8.5
88
190
124
68
11*14
VIBRATING MOTOR /
2 poles
D
E
F
G
H
L
M
N
d
Type/Size
Vibration energy(kg)
Output
Voltage
( V )
Vibrations
per min
KW
HP
2P-10
75
0.075
1/10
220
3450
103
115
40
15
110
210
150
73
13.5
2P-11
150
0.1
1/8
220
3450
113
120
140
15
144
255
155
175
16
2P-15
350
0.25
1/3
220
3450
150
150
106
15
155
255
190
158
18
2P-18
600
0.4
1/2
220
3450
180
180
102
16
187
305
227
173
21
2P-21
1000
0.75
1
220
3450
210
210
120
21
220
340
260
200
22.5
2P-24
2000
1.5
2
220
3450
240
250
220
27
265
470
325
315
25
The dimension or size of various electric motors

4 poles
D
E
F
G
H
L
M
N
d
Type/Size
Vibration energy(kg)
Output
Voltage
( V )
Vibrations
per min
KW
HP
4P-11
100
0.1
1/8
220
1750
103
120
140
15
144
255
155
175
16
4P-15
250
0.125
1/6
220
1750
150
150
106
15
155
254
190
158
18
4P-18
500
0.2
1/4
220
1750
180
180
102
16
187
305
227
173
21
4P-21
800
0.4
1/2
220
1750
210
210
120
21
220
340
260
200
22.5
4P-24
1600
0.75
1
220
1750
240
260
143
27
265
385
324
237
25
4P-28
2400
1.12
1 1/2
220
1750
275
260
150
35
285
420
325
240
27
4P-31
3200
1.5
2
220
1750
310
310
190
40
330
545
395
318
33
4P-35
5000
2.2
3
220
1750
350
380
240
50
365
600
480
395
36
4P-40
7500
3.7
5
220
1750
400
380
290
58
450
700
510
468
39
4P-48
8500
5.5
7 1/2
220
1750
470
440
280
45
480
700
550
430
44
4P-50
10000
7.5
10
220
1750
480
440
390
60
500
835
550
575
44
